The 2026 Architectural Aluminum Wall Panel Guide: Zero Maintenance Facades, Rainscreen Engineering, and Coastal Durability for Tampa Properties

South Florida's coastal environment presents some of the harshest architectural testing grounds on the planet. Between relentless salt spray blowing off the Gulf of Mexico, intense ultraviolet (UV) solar radiation that breaks down traditional chemical paint bonds, and subtropical storm seasons bringing torrential rain and hurricane force winds, maintaining exterior facades is a continuous, expensive struggle. Traditional stucco cracks under foundational settling, fiber cement absorbs moisture over time, and natural timber requires constant pressure washing and toxic resealing to stave off rot and termites.

In 2026, progressive architects, commercial general contractors, and design-focused luxury homeowners across Tampa Bay have converged on a high tech alternative: Architectural Aluminum Panels (including heavy-gauge solid plate aluminum and Aluminum Composite Material - ACM). Offering a sleek, monolithic aesthetic and engineered longevity, aluminum wall panels provide an impervious, zero-maintenance armor for contemporary buildings. This comprehensive technical guide details the metallurgy, rainscreen physics, thermal efficiencies, and architectural applications of aluminum panel systems.

1. The Metallurgy: Why Aluminum Defeats Florida’s Coastal Elements

The long term performance of aluminum in coastal regions stems from its unique elemental chemistry:

• Self Healing Passivation: Unlike ferrous metals (steel and iron) which oxidize continuously into destructive rust, aluminum undergoes natural passivation. Upon contact with atmospheric oxygen, it instantly creates a microscopic, transparent aluminum oxide layer ($Al_2O_3$). If the surface is scratched, this oxide film regenerates immediately, preventing salt air and moisture from causing subsurface pitting.
• Industrial PVDF (Kynar 500) Fluoropolymer Finishes: Architectural aluminum panels are coated through high temperature factory coil coating using Polyvinylidene Fluoride (PVDF) resin technology. The atomic carbon fluorine bond in PVDF is one of the strongest chemical bonds known to science. This coating resists chalking, color fading, and acid rain, retaining 90% of its initial gloss and pigment intensity after 30 years under the blistering Florida sun without needing a single brush of paint.
• Class A Fire Immunity: Aluminum is completely non-combustible. High performance aluminum panels meet the most stringent Class-A ASTM E84 fire spread standards, complying effortlessly with strict commercial building codes across Hillsborough and Pinellas counties.

2. Advanced Building Physics: The Ventilated Rainscreen Principle

The most sophisticated application of aluminum exterior panels is the Drained and Back Ventilated Rainscreen (D/BVR) system. In standard construction, exterior cladding is pinned directly against the building envelope, trapping moisture against the sheathing when wind driven rain penetrates tiny micro-fissures.

When installing aluminum panels as a rainscreen system, panels are suspended on engineered aluminum sub framing rails, leaving a 1 inch to 2 inch continuous air gap behind the panel:

1. Pressure Equalization: When high velocity hurricane winds hit the exterior facade, air moves through the open joint reveals into the rear air cavity. This equalizes atmospheric pressure on both sides of the panel, removing the suction force that typically pulls water deep into wall cavities.
2. Capillary Break & Drainage: Over 99% of wind driven rain runs down the outer face of the aluminum panel. Any microscopic droplets that enter the joints drain harmlessly down the air gap and exit through lower weep holes.
3. Continuous Convective Drying: Florida's hot sun heats the aluminum skin, creating a thermal chimney effect inside the air cavity. Cooler air is drawn in from the bottom and vented out the top, continuously evaporating incidental humidity and preventing structural mold from ever forming on building studs.

3. Energy Efficiency: Slashing Tampa Summer Cooling Loads

With Florida summer temperatures routinely exceeding 95°F, residential and commercial HVAC units run non-stop. Aluminum wall panel systems contribute directly to indoor thermal efficiency:

• Solar Heat Deflection (Cool-Roof Technology): High reflectance PVDF finishes reflect a high percentage of infrared solar energy away from the building rather than absorbing it like dark masonry or asphalt shingles.
• Thermal Decoupling: Because rainscreen aluminum panels sit away from the structural wall on clips, conductive heat transfer into the building's interior framing is dramatically reduced. This thermal break can reduce exterior wall heat transfer by up to 30%, noticeably lowering monthly air conditioning utility costs.

4. Architectural Applications: From High Tech Commercial to Residential Luxury

Modern Residential Facades & Cantilevers

Contemporary two story homes in neighborhoods like South Tampa and Davis Islands frequently utilize aluminum panels on second-story overhangs, cantilevered balcony soffits, and entryway focal walls. Crisp metallic reveals in Charcoal Black, Anodized Silver, and Champagne Bronze create a clean, minimalist contrast against white stucco and warm travertine stone.

Photorealistic Wood Grain Aluminum

For homeowners captivated by the organic beauty of Brazilian teak or Western red cedar but unwilling to endure the routine maintenance, wood grain aluminum offers the ultimate compromise. Advanced sublimation technology bakes realistic high definition wood grain directly into the fluoropolymer coating. You achieve the visual warmth of exotic timber siding with the lifetime rust immunity of aluminum completely immune to Florida dry wood termites and carpenter bees.

Interior High Impact Commercial Feature Walls

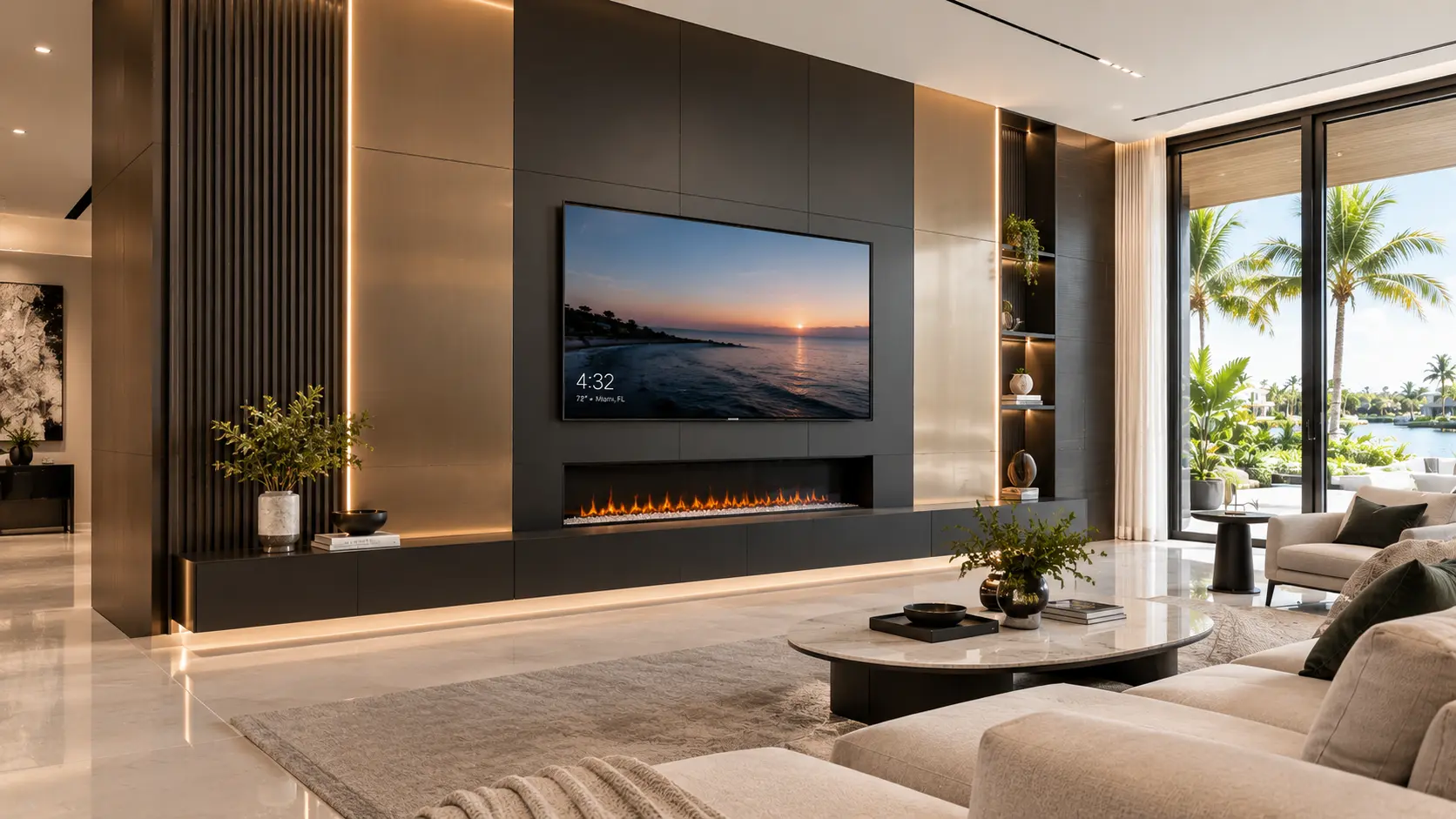

Beyond the exterior, brushed aluminum panels are widely deployed across modern hotel lobbies, commercial corporate boardrooms, and luxury residential home elevator surrounds. Fingerprint resistant clear coatings and magnetic backing capabilities make them both visually striking and exceptionally durable against heavy public traffic.

5. Longevity and Cost Analysis: The Zero-Maintenance ROI

While the initial material procurement and installation cost of architectural aluminum panels is higher than basic stucco or vinyl siding, the 20 year total cost of ownership (TCO) tells a drastically different story:

• Stucco: Requires pressure washing every 12 months, caulk sealing every 3 to 5 years, and complete exterior repainting every 7 to 10 years at a cost of thousands of dollars per cycle.
• Aluminum Panels: Require only a gentle rinse with a garden hose once or twice a year to remove surface coastal salt deposits. No repainting, no caulking re runs, no structural cracking repairs, and zero termite treatments for 30+ years.

The Bottom Line

Architectural aluminum wall panels deliver the ultimate synthesis of high performance building physics and ultra modern aesthetic appeal. By resisting salt air corrosion, blocking solar thermal gain, and eliminating ongoing exterior maintenance, aluminum cladding represents one of the most durable investments you can make in a Florida property.
